Kurvväxel, Vänster manuell R2/3 30°

Kurvväxel Vänster Manuell R2/3 30°.
Rocoline med banvall.
Skala: H0

OBS!
Nytt art.nr. 42560

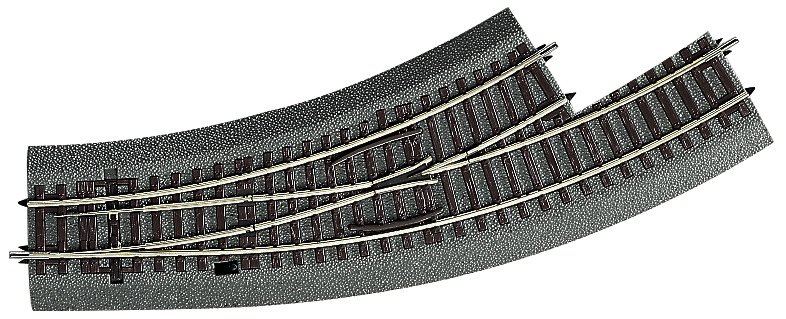

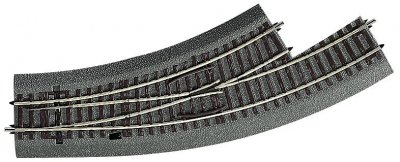

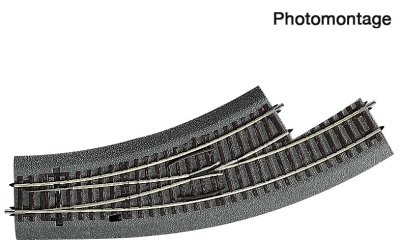

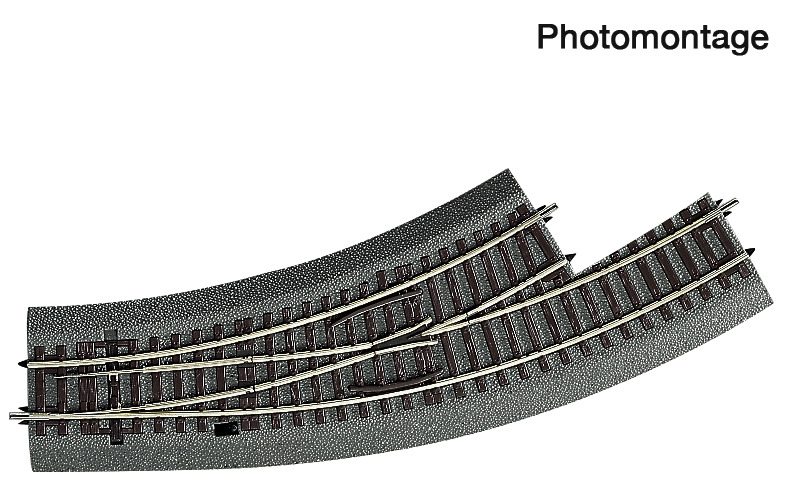

Curved turnout left hand BWl2/3 with bedding, manually operated.

Radius of main track and branch track 358 mm (R2), arc angle 30°, polarization pre-installed.

Suitable electric turnout drive: 42620 or 42624

■ Frog and wheel guide completely revised
■ Prototypical passing of the frog possible
■ Groove width in the frog area according to NEM
■ Pre-installed polarisation of the turnout frog

Note:
The curved turnouts R2/R3 are only conditionally suitable for to-scale express coaches with a length-over-buffers exceeding 300 mm because the parallel track separation narrows at the turnout, causing problems if long wagons meet at the turnout.
