Trevägsväxel DWW15

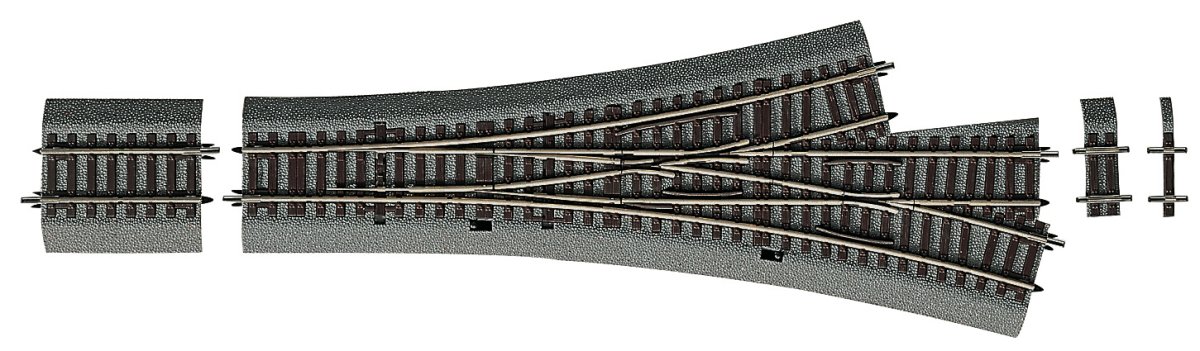

Asymmetrical three-way turnout DWW15 with bedding, manually operated.
First divergence to the left, second divergence to the right.
Length 287.5 mm (= G1 + G¼), branch angle 15° each, branch radius 873.5 mm each, frog angle 10.8°.

To adapt the length a 57.5 mm G¼ straight track element and spacers D12 and D4 are included.

Suitable turnout mechanisms (2 pieces are required): 42620 or 42624.
Please note the operating instructions!
